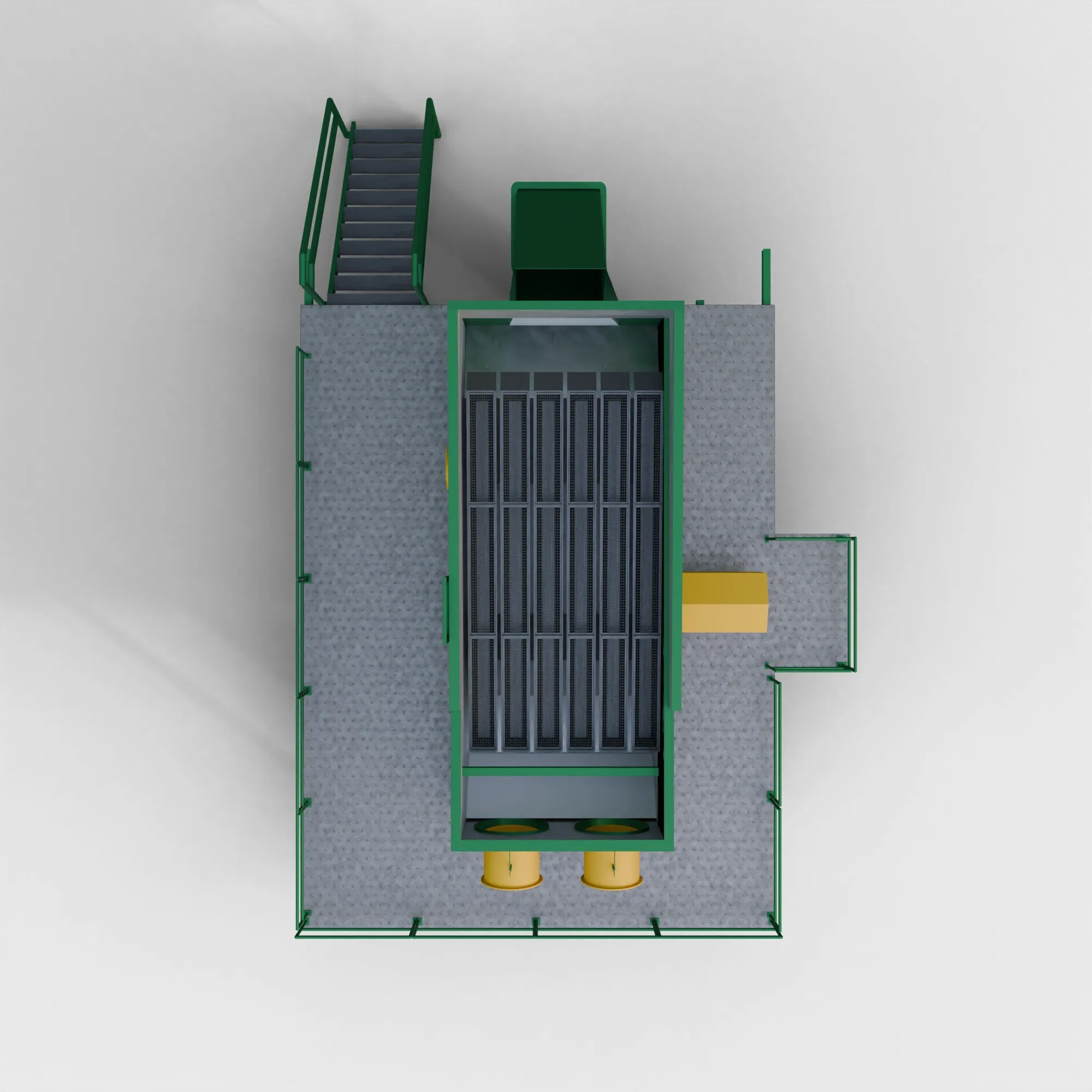

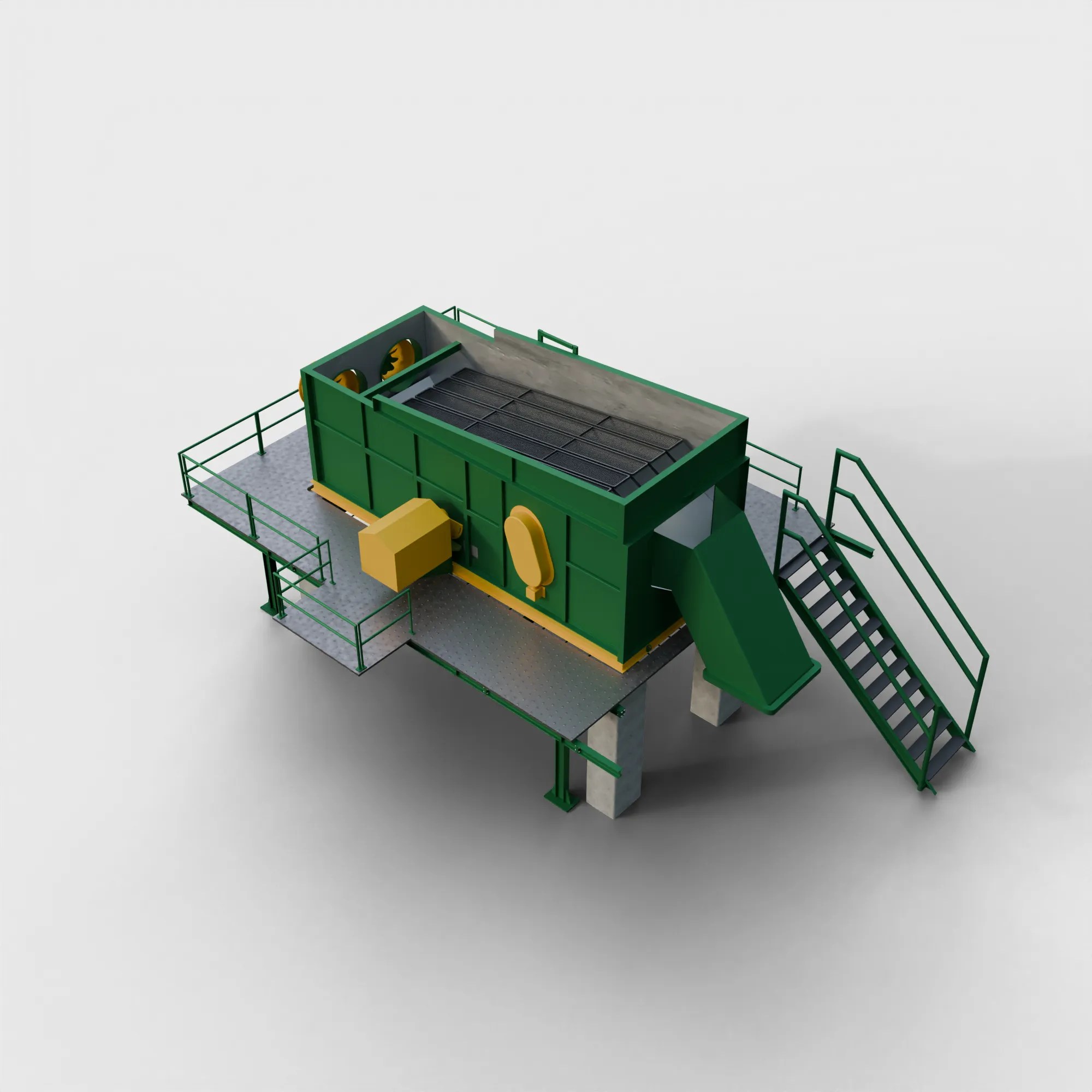

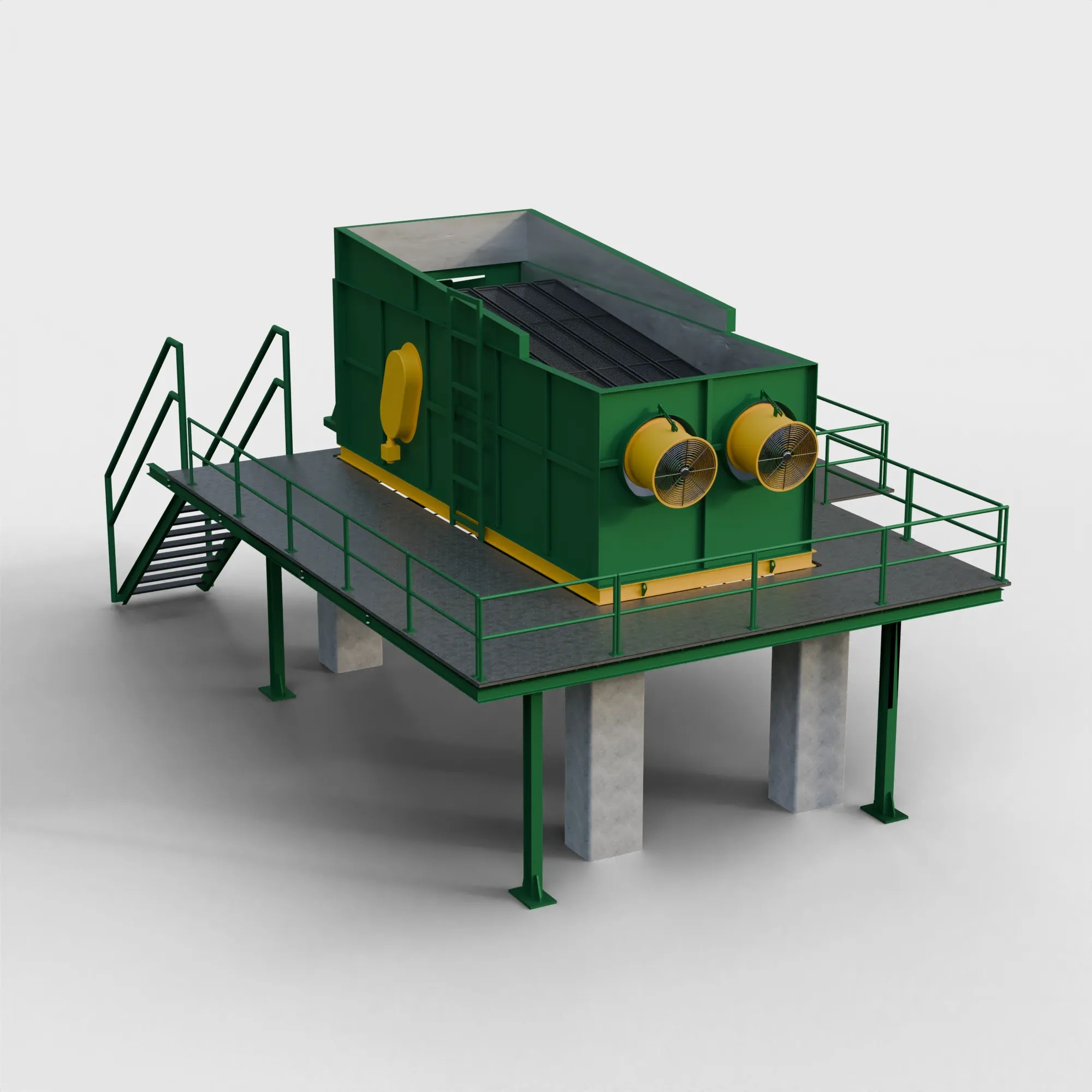

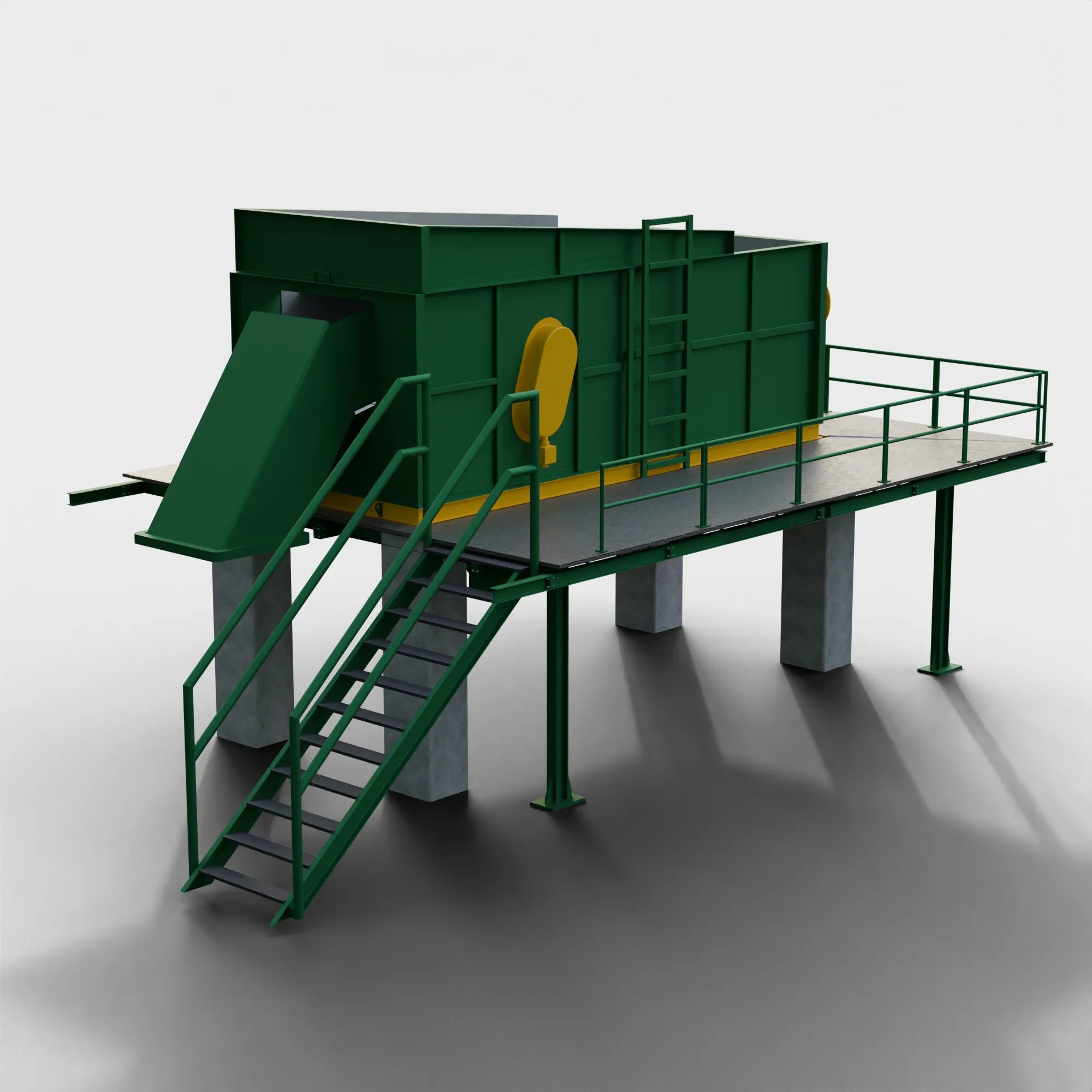

Stationary Ballistic Separator
High-performance stationary ballistic separator for fixed-installation waste sorting plants — delivers consistent 2D/3D/fine separation with minimal maintenance.
About This Product
Duromech stationary ballistic separators classify mixed dry waste into rolling 3D fractions, flat 2D fractions and screened fines. Paddle angle, deck configuration and operating settings are selected for the feed composition, target throughput and downstream recovery process.
Benefits of Stationary Ballistic Separator
Environmental Impact
Significantly reduces landfill waste and enhances resource recovery.
Economic Benefits
Lowers operational costs and generates revenue through recycling.
Operational Efficiency
Speeds up processing times and cuts down on labor costs.
Durability
Built with robust materials for long-lasting performance.
High Efficiency
Achieves high separation efficiency for diverse materials.
Customization
Tailored to meet specific industry needs.
Low Maintenance
Easy access for servicing reduces downtime.
Advanced Technology
Utilizes the latest technology for precise separation.
How It Works
Our ballistic separator operates with a series of six parallel paddles in orbital motion. This design maximizes separation efficiency by shaking incoming materials, allowing different materials to follow unique trajectories based on their physical characteristics.
- 1 2D materials (paper, cardboard, plastic film) — lightweight and flat materials slide downward on the paddle surfaces, collected at the bottom.
- 2 3D materials (bottles, cans, stones) — heavy and rolling materials bounce and roll upward along the paddles, exiting at the top.
- 3 Fine fractions — screened through perforated paddles and collected separately.
Key Specifications & Details
| Parameter | Details |
|---|---|
| Dimensions | 2000mm x 2170mm x 6000mm |
| Number of Paddles | 6 |
| Available Surface | 1200 m² |
| Screening Area | 9 m² |
| Working Length | 14000mm |
| Working Breadth | 6000mm |
| Installed Power | 15 kW |
| Power Rating | 7.5 kW |
| Output Capacity | 25–30 tons per hour |
| Inclination Angle | 8°–18° |
| Separation | 2D, 3D & fine fractions |
Where It's Used
Frequently Asked Questions
It processes lightweight packaging, MSW, paper/cardboard, and plastic containers.
It can handle 25-30 tons per hour.
Regular maintenance checks are recommended daily, weekly, monthly, and annually as per the manual.
